📌 KL 수치 보류 중 / KL numbers under review — the model itself is fine

2026-07-26. 이 카드의 "KL vs Q8(8bit 레퍼런스)" 수치는 현재 보류합니다. 레퍼런스로 쓰인 8bit 빌드에 결함이 확인되어(mx.split 2³¹ 초과 텐서 침묵 손상), 손상된 레퍼런스를 기준으로 측정된 값이기 때문입니다.

The "KL vs Q8" figures on this card are withheld pending re-measurement: the 8-bit build used as the reference has been found defective, so those numbers were measured against a corrupted baseline.

보류되는 것 / withheld: 슬라이스별 KL vs Q8 표 · "DWQ가 KL을 58–72% 감소" 주장 · eval_ladder.png의 KL 축

영향 없는 것 / unaffected — 이 빌드 자체는 정상입니다:

• 모델 품질(한국어·영어·코드 생성)은 직접 생성으로 검증되었고 그대로 유효합니다. Generation quality is verified directly and stands.
• 포팅 패리티 KL ≈1e-7 / token 은 수정된 HF torch 레퍼런스 기준이라 8bit와 무관하며 유효합니다. The port-parity figure is measured against the fixed HF reference, not the 8-bit build.
• 루프 프로브(distinct-4gram) 등 레퍼런스가 필요 없는 측정은 유효합니다.

8bit 레퍼런스를 재빌드한 뒤 재측정하여 이 카드의 수치를 갱신하고 이 주석을 내리겠습니다. The reference is being rebuilt; these figures will be re-measured and this note removed.

Motif-3-Beta-Alis-MLX-Dynamic-2.3bpw · ⚠️ experimental floor build

Apple Silicon (MLX) mixed-precision quantization of Motif-Technologies/Motif-3-Beta — a 314.84B-parameter (≈13B active) Mixture-of-Experts reasoning model, text-only, bilingual Korean / English (+ code), with 97.84% of its mass in the routed experts and native 256K context — pushed to the lowest effective bit-rate the MLX affine container supports (routed experts at 2-bit / group-size 128): 2.315 bpw measured, 85 GB on disk. To our knowledge this is the first community MLX port of Motif-3-Beta in any format, the only build in the family sized to run on a 128 GB Apple Silicon Mac, and the family's headline shippable floor.

⚠️ Experimental floor build. 2-bit/g128 experts is the hard floor of the MLX affine format — coherent and useful after DWQ, but the 4.5bpw / 8bit siblings are closer to lossless. If your Mac has ≥256 GB, prefer a larger build.

⚠️ Requires a patched mlx-lm with the motif model class (see How to run). Stock mlx-lm has no Motif support and will not load this checkpoint.

⚠️ Non-commercial research license, inherited in full from Motif-3-Beta (a beta release). See License.

What clip-search + DWQ bought

The raw 2-bit floor loops on code and collapses on Korean; clip-search barely moves KL, DWQ does the work — distilling toward the 4.5bpw (C6) teacher on a 45% Korean mix cuts KL 58-72% and eliminates the loops. It is the only build that received both low-bit levers.

---

Model at a glance

Motif-3-Beta is a text-generation LLM (no vision/audio), reimplemented for MLX and verified against a bug-fixed reference.

Base model	Motif-Technologies/Motif-3-Beta — 314.84B total / ≈13B active
Architecture	Sparse MoE, 53 layers (0-1 dense, 2-52 MoE); 384 routed experts, top-8 + 1 shared
Routed-expert mass	97.84% of parameters — the bulk, and where the bits go
Attention	GDLA (Grouped Differential Latent Attention): MLA-style low-rank q/kv + differential-v2 + elementwise output gate; 80 heads / 16 KV groups, head_dim 192
Sliding window	interleaved SWA — window 128 on 40 layers; 13 full-attention layers carry YaRN, the 40 SWA layers plain rope
Other components	mHC (manifold-constrained hyper-connections, ×2/layer); Grouped PolyNorm per-expert activation; rms_norm eps 1e-6
Tokenizer	vocab 220,160; stop tokens {0, 3, 6}; chat template auto-opens <think>
Context	256K (262,144) native
Bits/weight	2.315 (measured; per-tensor mixed, experts 2-bit/g128)
On-disk size	85 GB (85 GiB)
Format	MLX (Apple Silicon); library_name: mlx

Floor recipe (verified from config.json)

Expert bit-width sets the footprint (97.84% of params); everything else stays high-precision.

Component	Bits	Notes
Routed experts (gate/up/down)	2-bit g128	≈97.8% of params — the MLX floor (g128, not g64, for the smallest footprint)
Attention (GDLA projections)	4-bit g64	per-token critical path
wkv_a (KV-A latent down-projection)	8-bit g64	latent chokepoint — kept high across every profile
Token embedding · LM head	6-bit g64	distribution-sensitive
Router gate · mHC · lambda_proj · all norms · act_fn	fp (unquantized)	discrete control paths + normalization — full precision is nearly free

Architecture

---

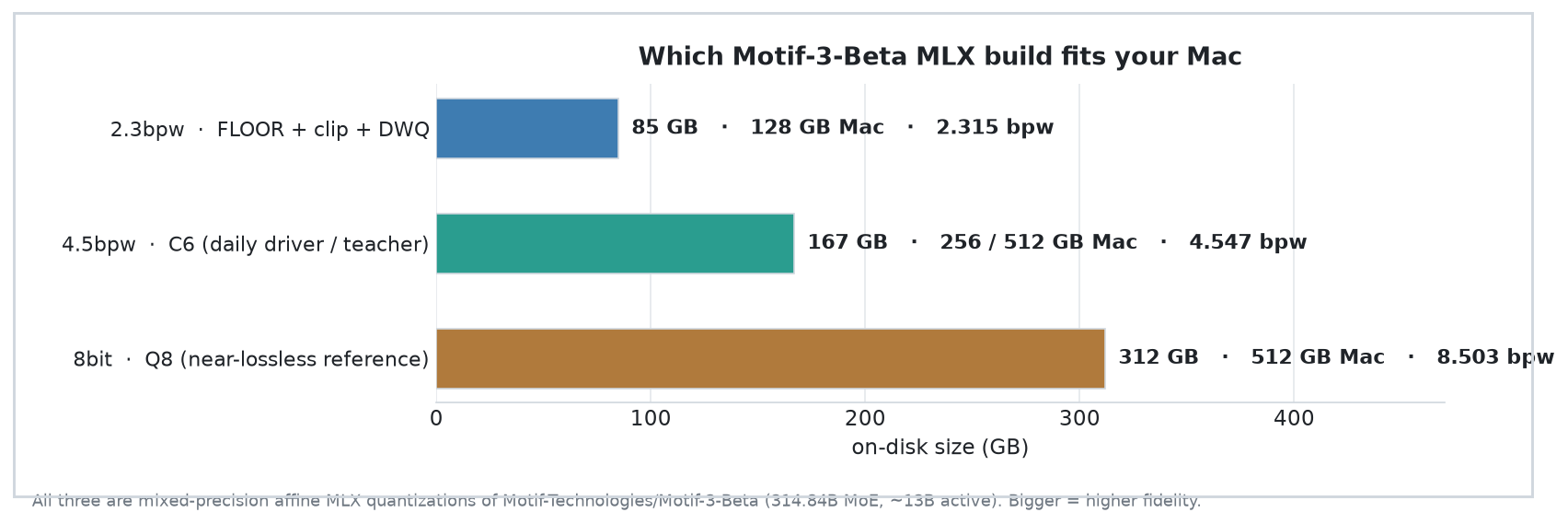

Build ladder

Build	Recipe	Size	bpw	Target
2.3bpw (this)	experts 2b/g128 · attn 4b · wkv_a 8b · embed/head 6b · router/mHC/norms fp	85 GB	2.315	128 GB Mac
4.5bpw (C6)	experts 4b · attn 6b · wkv_a 8b	167 GB	4.547	256 / 512 GB Mac · DWQ teacher
8bit (Q8)	all 8b/g64	312 GB	8.503	512 GB Mac · reference

---

How to run

Motif support is not yet in an mlx-lm release. Install from the fork/branch that carries the motif model class:

pip install git+https://github.com/avlp12/mlx-lm.git@motif

Python:

from mlx_lm import load, generate
from mlx_lm.sample_utils import make_sampler

model, tokenizer = load("avlp12/Motif-3-Beta-Alis-MLX-Dynamic-2.3bpw")

messages = [{"role": "user", "content": "복잡한 문제를 단계적으로 풀어줘."}]
prompt = tokenizer.apply_chat_template(messages, add_generation_prompt=True)
# The chat template auto-opens a <think> block: the model reasons first, then answers.
sampler = make_sampler(temp=1.0, top_p=0.95)   # recommended; greedy can loop on some prompts
print(generate(model, tokenizer, prompt=prompt, max_tokens=1024, sampler=sampler))

CLI / server:

mlx_lm.generate --model avlp12/Motif-3-Beta-Alis-MLX-Dynamic-2.3bpw \
  --prompt "Explain MoE routing in two sentences." --temp 1.0 --top-p 0.95 -m 512

mlx_lm.server --model avlp12/Motif-3-Beta-Alis-MLX-Dynamic-2.3bpw   # OpenAI-compatible

• Sampling: temp 1.0 / top-p 0.95 recommended — greedy can loop at this bit-rate (see the loop-probe in Evaluation).
• Stop tokens: tokenizer stops on {0, 3, 6}; pass all three as stop ids if you drive generation yourself.
• Reasoning mode: the chat template auto-opens a <think> block — expected, not a bug.
• Wired memory: on a 128 GB Mac the weights fit the default limit tightly; for real context raise it and use 4-bit KV — see Hardware.

---

Method — alis-dwq pipeline

Weights come from alis-dwq, the pipeline behind the GLM-5.2 (745B) and Hy3 (295B) Alis MLX builds: mixed-bit affine quantization (experts lowest; router / mHC / lambda_proj / norms fp; wkv_a 8-bit; embed/head 6-bit), then two held-out-gated passes:

1. Anchor-guarded clip-search — per 128-weight group, clipped grids are accepted only when they lower MSE without raising max abs error beyond ≈1.1× the min-max grid's, preserving outlier "anchor" weights.
2. Layerwise DWQ distillation against the 4.5bpw (C6) teacher on a 45% Korean mix (EN 30 / code 25 / KO 45), with a per-round held-out rollback gate.

Port parity: MLX logits match a bug-fixed HF reference to KL ≈1e-7 / token.

---

Evaluation

Measured on a fixed EN / code / KO slice vs the 8bit (Q8) build (near-lossless vs bf16, which does not fit in memory).

KL(Q8 ‖ build) and greedy loop-probe (distinct-4gram, 256 tok/slice):

slice	KL vs Q8	loop distinct-4gram
EN	0.277	0.46
code	0.100	0.96
KO	0.522	0.88
unweighted mean	≈0.30	no cycles on any slice

What DWQ bought (see chart above): across slices DWQ cut KL 58-72% (KO 1.235 → 0.522) and turned the code slice from a hard cycle (distinct-4gram 0.011) into 0.96. Telemetry: valid loss 0.379 → 0.200, rounds 1-6 accepted, round 7 reverted by the rollback gate (natural stop). Clip-search alone was ≈flat on KL; DWQ carries the floor.

4-bit KV-cache probe (self-KL, fp16-KV vs 4-bit-KV): 0.006 overall (EN 0.005 / code 0.003 / KO 0.011), flip 3% → 4-bit KV is viable, which matters on the 128 GB target where KV is the binding constraint.

Honest caveats:

1. KO is the softest slice (KL 0.522 vs EN 0.277) — the usual low-bit pattern, substantially recovered by DWQ (raw was 1.235) but not erased.
2. Greedy can loop; use temp 1.0 / top-p 0.95. EN distinct-4gram under greedy is 0.46 (no cycle) — precisely why sampling is recommended over greedy.
3. Very-long-tail factual recall is weak — e.g. it does not reliably reproduce obscure text like the 4th verse of the Korean national anthem. This is a base-model property, not a quantization artifact (the 8bit reference shares it), most visible here. General knowledge, code, and bilingual generation are reliable.

---

Correctness & port notes

• Logit parity. On a truncated model (fp32, EN/KO/code prompts) MLX matches a bug-fixed HF reference to KL ≈1e-7 / token, top-1 100%. SWA long-context self-consistency is a bit-exact match (cached wide forward vs no-cache reference).
• The shipped HF reference had bugs (documented in discussions/6): a YaRN RoPE dimension crash, an eager-attention GQA crash, and a grouped_mm path applying expert-0 PolyNorm coefficients to all experts. Motif Technologies pushed fixes (SHA d2c9ac6) and this port matches the fixed reference; the early incoherence root-caused to the Grouped PolyNorm activation (sigmoid coefficients + output_scale 0.5 + routed bias_clamp) — credit to Motif for the fix.
• One MLX-core bug is worked around in the port: mx.split silently corrupts the tail of a >2³¹-element tensor (the 8 GB bf16 gate_up); basic strided slices are used instead. Upstream ml-explore/mlx#3836.

---

Hardware

The only build in the ladder that runs in a 128 GB Mac's unified memory. macOS caps GPU-wired memory at a default iogpu.wired_limit_mb of ≈96 GB on a 128 GB machine; the 85 GB of weights fit under it, but tightly (≈11 GB free before KV/prefill). For real context, raise the limit and use 4-bit KV:

sudo sysctl iogpu.wired_limit_mb=122880       # ≈120 GB; leaves the OS ≈17 GB
mlx_lm.generate --model avlp12/Motif-3-Beta-Alis-MLX-Dynamic-2.3bpw \
  --kv-bits 4 --kv-group-size 64 --quantized-kv-start 4096 --prompt "…"

If your Mac has ≥256 GB, use the 4.5bpw or 8bit build — this floor is deliberately bit-starved for the 128 GB target.

---

License

Motif-3-Beta ships no formal license name and no LICENSE file; its model card states, verbatim:

"Permission is granted to use, modify, and redistribute this software for personal, educational, and non-commercial research purposes only. Commercial use is prohibited without prior written permission from Motif Technologies."

A quantized MLX port is a modification-and-redistribution, which these terms explicitly permit provided it stays non-commercial. This derivative inherits the license in full. The license: other / license_name fields are a best-effort mapping — the authoritative terms are the quoted text and the base model's card.

Credits & attribution

• Base model: Motif Technologies — Motif-3-Beta (non-commercial research). All architecture — GDLA, Grouped PolyNorm, mHC — and the trained weights are theirs, as are the reference fixes (SHA d2c9ac6).
• MLX & mlx-lm: Apple ml-explore.
• MLX port, motif model class, mixed-precision recipe, clip-search + DWQ: Alis (avlp12), via alis-dwq.

Independent, unofficial derivative — not affiliated with or endorsed by Motif Technologies. Provided as-is, without warranty. Research / non-commercial use only.

Citation

Alis (avlp12) (2026). Motif-3-Beta-Alis-MLX-Dynamic-2.3bpw — experimental 2.315 bpw MLX floor build of Motif-3-Beta for 128 GB Apple Silicon, via anchor-guarded clip-search + layerwise DWQ.
