+# 🎙️ ESP32 Real-Time Audio Transcriber
+
+A real-time speech-to-text system that captures audio from an **ESP32 + INMP441** microphone, streams it to a cloud-hosted **FastAPI** server, transcribes it via **Deepgram Nova-3**, and generates conversational AI responses using **Google Gemini 2.5 Flash** — all viewable in a sleek live web dashboard.
+
+---
+
+## 📸 Product Images
+
+<p align="center">
+  <img src="product-media/product-image-1.jpeg" alt="Product Image 1" width="400"/>
+  &nbsp;&nbsp;
+  <img src="product-media/product-image-2.jpeg" alt="Product Image 2" width="400"/>
+</p>
+

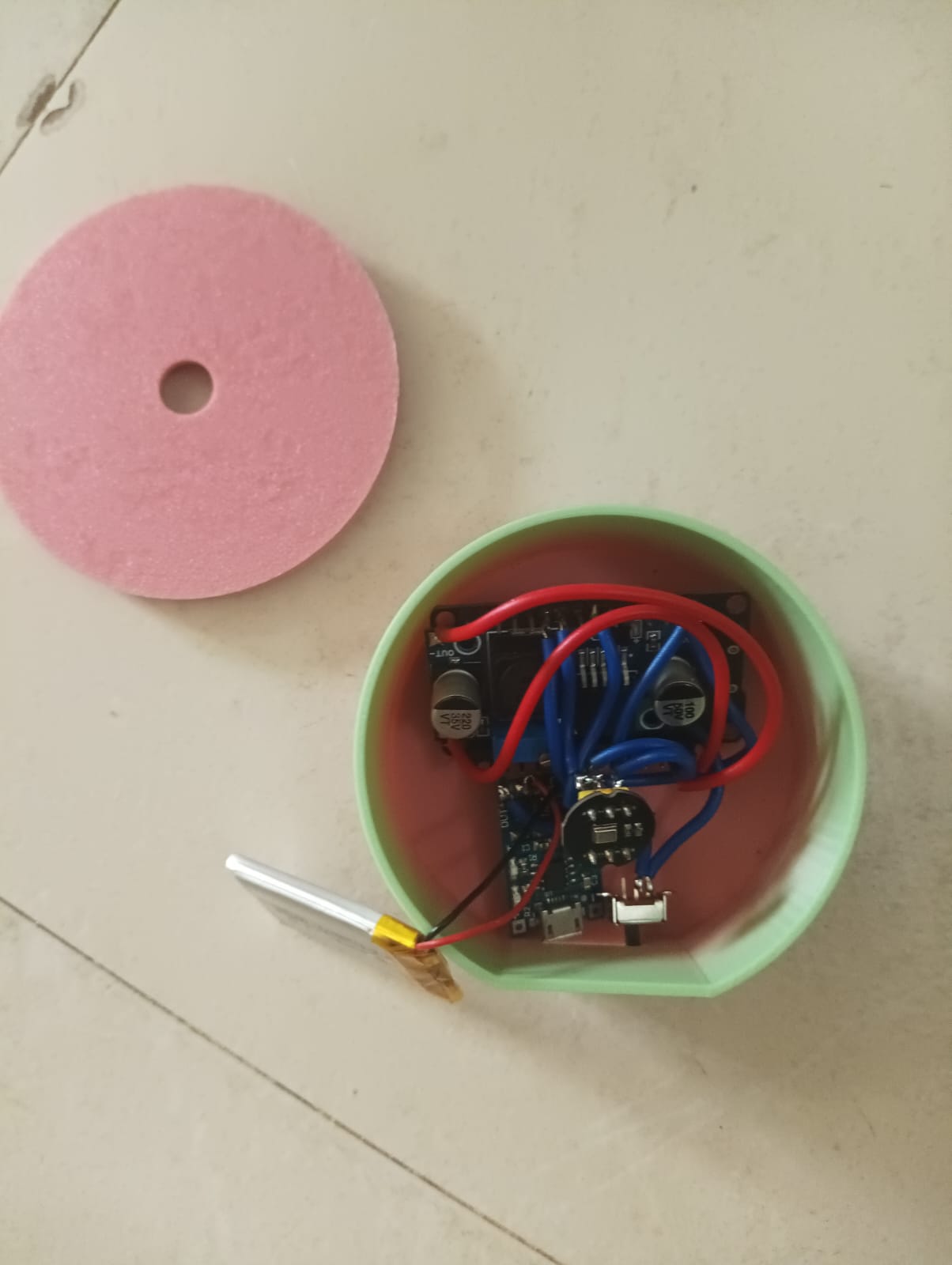

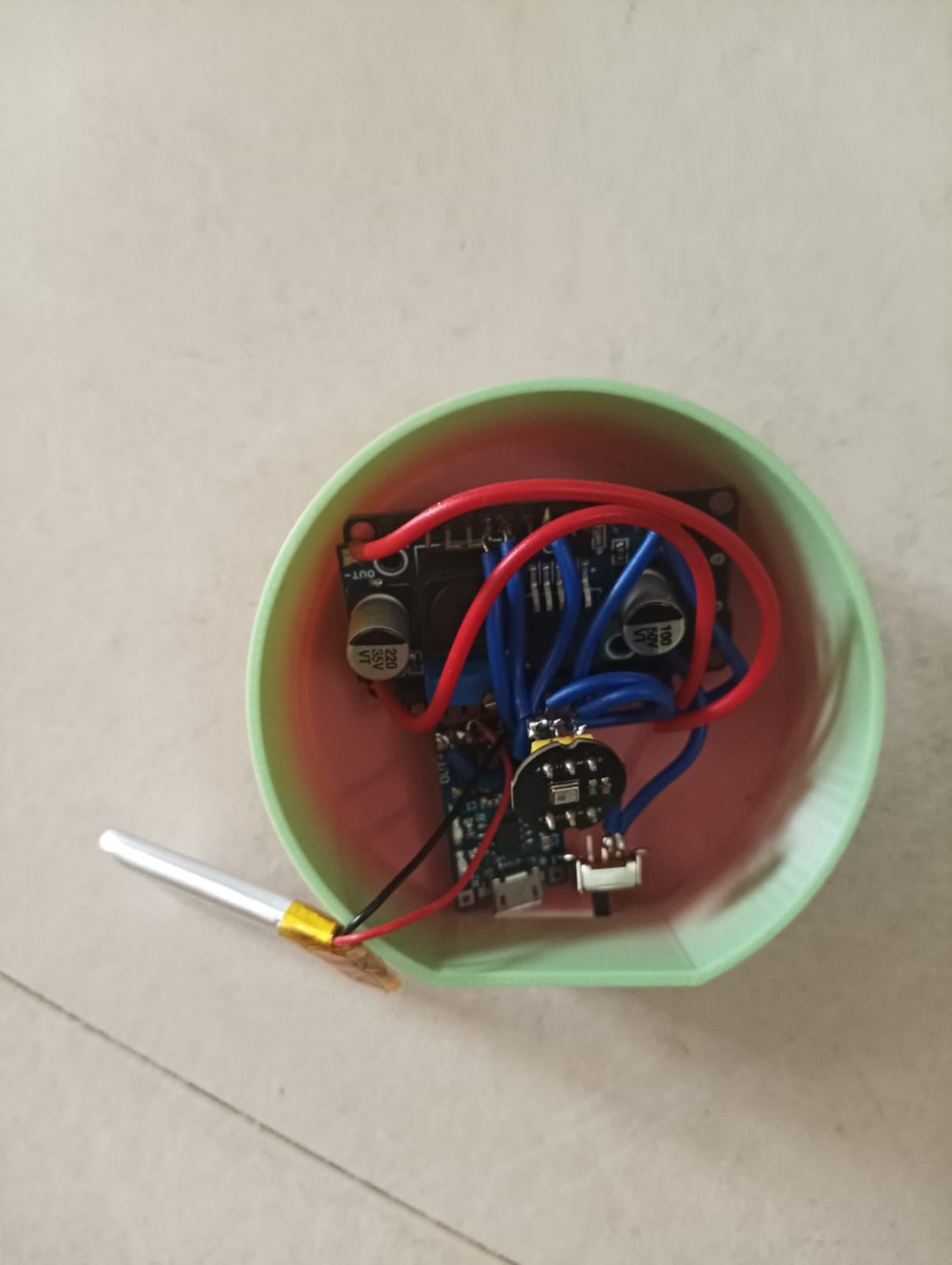

+<p align="center"><em>ESP32 + INMP441 assembly housed in a custom 3D printed case</em></p>
+
+### 🎥 Demo Video
+
+[▶ Watch the product demo video](product-media/product-demo.mp4)
+
+---
+
+## ✨ Features
+
+- **Real-time transcription** — Live interim + final transcripts powered by Deepgram Nova-3
+- **AI conversation** — Press **Q** or click *Ask Gemini* to get a conversational response from Gemini 2.5 Flash with multi-turn context
+- **WiFi captive portal** — No hardcoded credentials; configure WiFi via phone/laptop on first boot
+- **One-click deploy** — Server deploys to [Railway](https://railway.app) with zero configuration
+- **Live status dashboard** — Monitor WebSocket, Deepgram, ESP32, and Gemini connection states in real time
+- **Debug panel** — Built-in debug log overlay for troubleshooting
+
+---
+
+## 🏗️ Architecture
+
+```
+┌─────────────┐        WSS (binary audio)        ┌──────────────────┐       WSS        ┌───────────┐
+│   ESP32 +   │ ──────────────────────────────▶   │  FastAPI Server  │ ──────────────▶  │ Deepgram  │
+│   INMP441   │                                   │  (Railway)       │ ◀──────────────  │ Nova-3    │
+└─────────────┘                                   │                  │   transcripts    └───────────┘
+                                                  │                  │
+                                                  │                  │       REST        ┌───────────┐
+┌─────────────┐        WSS (text events)          │                  │ ──────────────▶  │  Gemini   │
+│   Browser   │ ◀──────────────────────────────   │                  │ ◀──────────────  │  2.5 Flash│
+│   Dashboard │ ──────────────────────────────▶   └──────────────────┘   AI response    └───────────┘
+└─────────────┘        "PROCESS" / "CLEAR"
+```
+
+---
+
+## 📁 Project Structure
+
+```
+audio_transcriber/
+├── server.py                        # FastAPI server (transcription + LLM + web UI)
+├── esp32_firmware/
+│   └── esp32_firmware.ino           # Arduino sketch for ESP32 + INMP441
+├── requirements.txt                 # Python dependencies
+├── Procfile                         # Railway process definition
+├── runtime.txt                      # Python version for Railway
+├── .gitignore                       # Ignored files (venv, cache, etc.)
+└── README.md                        # This file
+```
+
+---
+
+## 🔧 Hardware Requirements
+
+| Component | Description |
+|---|---|
+| **ESP32 Dev Board** | Any ESP32-WROOM-32 based board |
+| **INMP441** | I2S MEMS microphone module |
+| **Jumper wires** | 5 connections (see wiring below) |
+| **USB cable** | For flashing and serial monitor |
+
+### Wiring Diagram
+
+| ESP32 Pin | INMP441 Pin | Function |
+|---|---|---|
+| `GPIO 26` | `SCK` | Bit Clock |
+| `GPIO 32` | `WS` | Word Select (LRCLK) |
+| `GPIO 33` | `SD` | Serial Data Out |
+| `3.3V` | `VDD` | Power |
+| `GND` | `GND` + `L/R` | Ground (L/R → GND for left channel) |
+
+---
+
+## 🚀 Getting Started
+
+### 1. Deploy the Server to Railway
+
+1. Push this repository to GitHub
+2. Go to [railway.app](https://railway.app) → **New Project** → **Deploy from GitHub Repo**
+3. Railway auto-detects the `Procfile` and `runtime.txt` — no extra config needed
+4. Note your deployed URL (e.g. `audio-transcriber.up.railway.app`)
+
+### 2. Flash the ESP32 Firmware
+
+1. Open `esp32_firmware/esp32_firmware.ino` in **Arduino IDE**
+2. Install the required libraries via **Library Manager**:
+   - `WiFiManager` by tzapu (≥ 2.0)
+   - `WebSockets` by Markus Sattler (≥ 2.4)
+3. Update `SERVER_HOST` in the sketch if your Railway URL differs:
+   ```cpp
+   const char* SERVER_HOST = "your-app-name.up.railway.app";
+   ```
+4. Select board: **ESP32 Dev Module**
+5. Flash and open the Serial Monitor at **115200 baud**
+
+### 3. Connect to WiFi
+
+1. On first boot, the ESP32 creates a WiFi AP named **`Transcriber-Setup`**
+2. Connect to it from your phone or laptop
+3. Select your home WiFi network and enter the password
+4. The ESP32 saves the credentials and auto-connects on subsequent boots
+
+> 💡 **Reset WiFi:** Hold the **BOOT** button (GPIO 0) while powering on to clear saved credentials.
+
+### 4. View the Dashboard
+
+Open your Railway URL in a browser:
+```
+https://audio-transcriber.up.railway.app
+```
+
+You'll see live transcription appear as the ESP32 streams audio.
+
+---
+
+## 🧠 Using Gemini AI
+
+Once transcription lines appear:
+
+1. Press **Q** on your keyboard or click the **⬡ Ask Gemini** button
+2. Gemini reads the buffered transcript and responds in a casual, conversational tone
+3. The conversation supports **multi-turn context** — keep talking and asking
+4. Click **Reset Chat** to clear the conversation history
+
+---
+
+## ⚙️ Configuration
+
+### Server Environment
+
+| Variable | Default | Description |
+|---|---|---|
+| `PORT` | `8000` | HTTP port (auto-set by Railway) |
+
+### API Keys
+
+API keys are currently embedded in `server.py`. For production, move them to environment variables:
+
+```python
+DEEPGRAM_API_KEY = os.environ.get("DEEPGRAM_API_KEY")
+GOOGLE_API_KEY   = os.environ.get("GOOGLE_API_KEY")
+```
+
+### ESP32 Firmware
+
+| Constant | Default | Description |
+|---|---|---|
+| `SERVER_HOST` | `audio-transcriber.up.railway.app` | Railway domain |
+| `SERVER_PORT` | `443` | HTTPS/WSS port |
+| `WS_PATH` | `/ws/audio` | WebSocket endpoint |
+| `SAMPLE_RATE` | `16000` | Audio sample rate (Hz) |
+| `I2S_READ_LEN` | `256` | Samples per I2S read cycle |
+
+---
+
+## 🛠️ Local Development
+
+```bash
+# Clone the repo
+git clone https://github.com/<your-username>/audio_transcriber.git
+cd audio_transcriber
+
+# Create a virtual environment
+python -m venv venv
+source venv/bin/activate        # Linux/Mac
+# venv\Scripts\activate         # Windows
+
+# Install dependencies
+pip install -r requirements.txt
+
+# Run the server locally
+python server.py
+# → Server starts at http://localhost:8000
+```
+
+> Update `SERVER_HOST` in the ESP32 sketch to your local IP for local testing.
+
+---
+
+## 📦 Dependencies
+
+### Python (Server)
+
+| Package | Purpose |
+|---|---|
+| `fastapi` | Async web framework & WebSocket handling |
+| `uvicorn` | ASGI server |
+| `websockets` | Async WebSocket client for Deepgram |
+| `langchain-google-genai` | LangChain integration for Gemini |
+
+### Arduino (ESP32)
+
+| Library | Purpose |
+|---|---|
+| `WiFiManager` | Captive portal for WiFi provisioning |
+| `WebSockets` | WebSocket client with SSL support |
+
+---
+
+## 📝 API Endpoints
+
+| Endpoint | Type | Description |
+|---|---|---|
+| `GET /` | HTTP | Serves the live transcription dashboard |
+| `WS /ws` | WebSocket | Browser ↔ Server (transcripts + LLM events) |
+| `WS /ws/audio` | WebSocket | ESP32 → Server (raw 16-bit PCM audio) |
+
+### Browser WebSocket Messages
+
+| Direction | Message | Description |
+|---|---|---|
+| Browser → Server | `PROCESS` | Trigger Gemini on buffered transcript |
+| Browser → Server | `CLEAR_HISTORY` | Reset conversation history |
+| Server → Browser | `__FINAL__:<text>` | Final transcript line |
+| Server → Browser | `__INTERIM__:<text>` | Interim (partial) transcript |
+| Server → Browser | `__LLM_START__` | Gemini processing started |
+| Server → Browser | `__LLM_TOKEN__:<text>` | Gemini response text |
+| Server → Browser | `__LLM_DONE__` | Gemini processing complete |
+| Server → Browser | `__LLM_ERROR__:<msg>` | Gemini error message |
+| Server → Browser | `__STATUS__:<state>` | Connection state change |
+
+---
+
+## 🤝 Contributing
+
+1. Fork the repository
+2. Create your feature branch (`git checkout -b feature/amazing-feature`)
+3. Commit your changes (`git commit -m 'Add amazing feature'`)
+4. Push to the branch (`git push origin feature/amazing-feature`)
+5. Open a Pull Request
+
+---
+
+## 📄 License
+
+This project is open source and available under the [MIT License](LICENSE).
+
+---
+
+<p align="center">
+  Built with ❤️ using ESP32 · FastAPI · Deepgram · Gemini
+</p>

esp32_firmware/esp32_firmware.ino

@@ -0,0 +1,146 @@
+/*
+ * ESP32 Real-Time Audio Transcriber Firmware
+ *
+ * Hardware: ESP32 + INMP441 MEMS Microphone
+ *
+ * Captures 16-bit 16 kHz mono audio from an INMP441 microphone via I2S
+ * and streams it over a secure WebSocket connection to a FastAPI server
+ * hosted on Railway for real-time transcription via Deepgram.
+ *
+ * WiFi credentials are managed via WiFiManager (captive portal).
+ * Hold GPIO 0 (BOOT) low during startup to reset saved WiFi settings.
+ *
+ * Wiring (ESP32 → INMP441):
+ *   GPIO 26  → SCK  (Bit Clock)
+ *   GPIO 32  → WS   (Word Select / LRCLK)
+ *   GPIO 33  → SD   (Serial Data)
+ *   3.3 V    → VDD
+ *   GND      → GND  &  L/R (left channel = GND)
+ *
+ * Dependencies (install via Arduino Library Manager):
+ *   - WiFiManager  by tzapu  (>= 2.0)
+ *   - WebSockets   by Markus Sattler (>= 2.4)
+ *
+ * Board: ESP32 Dev Module  |  Partition: Default 4 MB
+ */
+
+#include <WiFiManager.h>
+#include <WebSocketsClient.h>
+#include "driver/i2s.h"
+
+// ─── Server Configuration ───────────────────────────────────────────────────
+const char* SERVER_HOST = "audio-transcriber.up.railway.app";
+const uint16_t SERVER_PORT = 443;
+const char* WS_PATH = "/ws/audio";
+
+// ─── Pin Definitions ────────────────────────────────────────────────────────
+#define WIFI_RESET_PIN 0     // BOOT button – hold LOW on startup to reset WiFi
+#define STATUS_LED     2     // On-board LED – HIGH = WebSocket connected
+
+// ─── Audio Configuration ────────────────────────────────────────────────────
+#define SAMPLE_RATE    16000
+#define I2S_READ_LEN   256   // Samples per I2S read cycle
+
+// ─── Globals ────────────────────────────────────────────────────────────────
+WebSocketsClient webSocket;
+bool wsConnected = false;
+
+// ─── I2S Configuration (INMP441 in master-receive mode) ─────────────────────
+i2s_config_t i2s_config = {
+  .mode = (i2s_mode_t)(I2S_MODE_MASTER | I2S_MODE_RX),
+  .sample_rate = SAMPLE_RATE,
+  .bits_per_sample = I2S_BITS_PER_SAMPLE_32BIT,
+  .channel_format = I2S_CHANNEL_FMT_ONLY_LEFT,
+  .communication_format = I2S_COMM_FORMAT_STAND_I2S,
+  .intr_alloc_flags = ESP_INTR_FLAG_LEVEL1,
+  .dma_buf_count = 8, .dma_buf_len = 256,
+  .use_apll = false, .tx_desc_auto_clear = false, .fixed_mclk = 0
+};
+
+i2s_pin_config_t pin_config = {
+  .bck_io_num = 26, .ws_io_num = 32,
+  .data_out_num = I2S_PIN_NO_CHANGE, .data_in_num = 33
+};
+
+// ─── WebSocket Event Handler ────────────────────────────────────────────────
+void webSocketEvent(WStype_t type, uint8_t* payload, size_t length) {
+  switch (type) {
+    case WStype_CONNECTED:
+      wsConnected = true;
+      digitalWrite(STATUS_LED, HIGH);
+      Serial.println("[WS] Connected!");
+      break;
+    case WStype_DISCONNECTED:
+      wsConnected = false;
+      digitalWrite(STATUS_LED, LOW);
+      Serial.println("[WS] Disconnected");
+      break;
+    case WStype_TEXT:
+      Serial.printf("[WS] Server: %s\n", payload);
+      break;
+    default:
+      break;
+  }
+}
+
+// ─── Setup ──────────────────────────────────────────────────────────────────
+void setup() {
+  Serial.begin(115200);
+  pinMode(WIFI_RESET_PIN, INPUT_PULLUP);
+  pinMode(STATUS_LED, OUTPUT);
+
+  Serial.println("\n=== ESP32 Transcriber v2.0 ===");
+
+  // ── WiFi (captive portal) ──
+  // Always clear saved credentials so the portal opens on every boot.
+  // No need to press BOOT button — just power cycle to pick a new network.
+  WiFiManager wm;
+  wm.resetSettings();
+  Serial.println("[WiFi] Credentials cleared — opening captive portal...");
+  wm.setConfigPortalTimeout(180);
+  if (!wm.autoConnect("Transcriber-Setup")) { ESP.restart(); }
+
+  IPAddress dns(8, 8, 8, 8);
+  WiFi.config(WiFi.localIP(), WiFi.gatewayIP(), WiFi.subnetMask(), dns);
+  Serial.println("[WiFi] Connected: " + WiFi.localIP().toString());
+
+  // ── I2S (INMP441 microphone) ──
+  i2s_driver_install(I2S_NUM_0, &i2s_config, 0, NULL);
+  i2s_set_pin(I2S_NUM_0, &pin_config);
+  i2s_zero_dma_buffer(I2S_NUM_0);
+
+  // Flush initial garbage samples
+  int32_t dummy[64];
+  size_t br;
+  for (int i = 0; i < 5; i++) {
+    i2s_read(I2S_NUM_0, dummy, sizeof(dummy), &br, pdMS_TO_TICKS(10));
+  }
+  Serial.println("[Mic] INMP441 ready");
+
+  // ── WebSocket (SSL) ──
+  webSocket.beginSSL(SERVER_HOST, SERVER_PORT, WS_PATH);
+  webSocket.onEvent(webSocketEvent);
+  webSocket.setReconnectInterval(5000);
+  webSocket.enableHeartbeat(15000, 10000, 2);
+  Serial.println("[WS] Connecting...");
+}
+
+// ─── Main Loop ──────────────────────────────────────────────────────────────
+void loop() {
+  webSocket.loop();
+  if (!wsConnected) return;
+
+  static int32_t raw32[I2S_READ_LEN];
+  static int16_t buffer16[I2S_READ_LEN];
+  size_t bytesRead;
+
+  i2s_read(I2S_NUM_0, raw32, sizeof(raw32), &bytesRead, pdMS_TO_TICKS(100));
+
+  if (bytesRead > 0) {
+    int samples = bytesRead / 4;
+    for (int i = 0; i < samples; i++) {
+      buffer16[i] = (int16_t)(raw32[i] >> 16);
+    }
+    webSocket.sendBIN((uint8_t*)buffer16, samples * 2);
+  }
+}

mise.toml

@@ -0,0 +1,2 @@
+[settings]
+python.github_attestations = false

requirements.txt

@@ -0,0 +1,4 @@
+fastapi==0.136.1
+uvicorn==0.46.0
+websockets==16.0
+langchain-google-genai==4.2.2

runtime.txt

@@ -0,0 +1 @@
+python-3.12.0

server.py

@@ -0,0 +1,1439 @@
+"""
+FastAPI server that:
+  1. Accepts raw audio from ESP32 over WebSocket (same port 8000)
+  2. Streams audio to Deepgram via raw WebSocket (no SDK)
+  3. Pushes transcripts to a browser via WebSocket
+  4. When user presses Q/Stop, sends full transcript to Gemini via LangChain
+     and streams the conversational response + follow-up question back to browser
+"""
+
+import asyncio
+import json
+import os
+from contextlib import asynccontextmanager
+
+import websockets
+from fastapi import FastAPI, WebSocket, WebSocketDisconnect
+from fastapi.responses import HTMLResponse
+
+from langchain_google_genai import ChatGoogleGenerativeAI
+
+# ─── Configuration ───────────────────────────────────────────────────────────
+
+DEEPGRAM_API_KEY = "Enter DeepGram API Key"
+GOOGLE_API_KEY      = "Enter Google API Key"
+GOOGLE_API_KEY_CHAT = "Enter Google API Key"
+
+SAMPLE_RATE  = 16000
+FASTAPI_HOST = "0.0.0.0"
+FASTAPI_PORT = int(os.environ.get("PORT", 8000))
+
+DEEPGRAM_URL = (
+    f"wss://api.deepgram.com/v1/listen"
+    f"?model=nova-3&language=en&encoding=linear16"
+    f"&sample_rate={SAMPLE_RATE}&channels=1"
+    f"&interim_results=true&punctuate=true"
+    f"&smart_format=true&endpointing=500"
+    f"&utterance_end_ms=1500"
+)
+
+# ─── Shared state ────────────────────────────────────────────────────────────
+
+browser_clients: list[WebSocket] = []
+
+# Accumulates FINAL transcript lines during an active ESP32 session
+transcript_buffer: list[str] = []
+
+# Conversation history for multi-turn LLM summarization
+conversation_history: list[tuple] = []
+
+# Separate chat history for user ↔ Sync AI conversations
+chat_history: list[tuple] = []
+
+# Stores ALL generated summaries so chat can reference them
+summary_history: list[str] = []
+
+# ─── LLM setup ───────────────────────────────────────────────────────────────
+
+# LLM for transcript summarization (Sync AI button)
+llm = ChatGoogleGenerativeAI(
+    model="gemini-2.5-flash",
+    google_api_key=GOOGLE_API_KEY,
+    temperature=1.0,
+    max_tokens=None,
+    timeout=None,
+    max_retries=2,
+)
+
+# Separate LLM for chat conversations (summary-aware Q&A)
+chat_llm = ChatGoogleGenerativeAI(
+    model="gemini-2.5-flash",
+    google_api_key=GOOGLE_API_KEY_CHAT,
+    temperature=0.7,
+    max_tokens=None,
+    timeout=None,
+    max_retries=2,
+)
+
+LLM_SYSTEM_PROMPT = (
+    "You are Sync AI, a smart and concise assistant. "
+    "When the user provides a transcript or message, summarise the key points "
+    "from the conversation so far in 2-3 sentences. "
+    "Then ask exactly 2 relevant follow-up questions to the user "
+    "to help deepen the discussion or clarify important details."
+)
+
+CHAT_SYSTEM_PROMPT = (
+    "You are Sync AI, a knowledgeable and friendly conversational assistant. "
+    "You have access to ALL the AI-generated summaries from the user's audio "
+    "transcription session. Use these summaries as your primary knowledge base "
+    "to answer the user's questions accurately. "
+    "If the user asks about something covered in the summaries, reference the "
+    "relevant summary details in your answer. "
+    "Keep answers clear and concise (2-4 sentences) unless the user asks for detail. "
+    "Be natural and conversational."
+)
+
+
+async def run_llm_on_transcript(full_transcript: str):
+    """
+    Send the buffered transcript to Gemini via LangChain.
+    Uses tuple-based messages and run_in_executor (same as new_with_llmv1.py).
+    Streams the response back to browser clients.
+    Each call is independent — previous summaries are NOT carried forward.
+    """
+    if not full_transcript.strip():
+        await broadcast("__LLM_ERROR__:No transcript to process.")
+        return
+
+    await broadcast("__LLM_START__")
+    print(f"[LLM] Processing transcript ({len(full_transcript)} chars)...")
+
+    # Clear conversation history so each sync is independent (no appending)
+    conversation_history.clear()
+
+    # Build message list using tuples: (role, content)
+    messages = [("system", LLM_SYSTEM_PROMPT)]
+
+    # Add current transcript as the only user turn (no previous turns)
+    messages.append(("human", full_transcript))
+
+    try:
+        # Call Gemini in a thread (same pattern as new_with_llmv1.py)
+        loop = asyncio.get_event_loop()
+        ai_msg = await loop.run_in_executor(None, llm.invoke, messages)
+        full_response = ai_msg.content
+
+        # Send the full response to browser
+        await broadcast(f"__LLM_TOKEN__:{full_response}")
+
+        # Save this summary so chat can reference it later
+        summary_history.append(full_response)
+
+        # Clear the transcript buffer so next sync only gets NEW lines
+        transcript_buffer.clear()
+
+        await broadcast("__LLM_DONE__")
+        print(f"[LLM] Response: {full_response[:100]}...")
+
+    except Exception as e:
+        err = str(e)
+        print(f"[LLM] Error: {err}")
+        await broadcast(f"__LLM_ERROR__:{err}")
+
+
+async def run_chat_response(user_message: str):
+    """
+    Handle a chat message from the user.
+    Uses chat_llm (separate Gemini instance) with ALL generated summaries
+    as context so the user can ask questions about any summary.
+    Runs in parallel with STT — does not block audio processing.
+    """
+    if not user_message.strip():
+        await broadcast("__CHAT_ERROR__:Empty message.")
+        return
+
+    await broadcast("__CHAT_START__")
+    print(f"[Chat] User: {user_message[:80]}...")
+
+    # Build message list with chat system prompt
+    messages = [("system", CHAT_SYSTEM_PROMPT)]
+
+    # Inject ALL generated summaries as context
+    if summary_history:
+        summaries_context = "\n\n".join(
+            f"--- Summary {i+1} ---\n{s}" for i, s in enumerate(summary_history)
+        )
+        messages.append((
+            "system",
+            f"Here are all the AI-generated summaries from this session "
+            f"({len(summary_history)} total). Use these to answer the user's "
+            f"questions:\n\n{summaries_context}"
+        ))
+
+    # Include current (unsummarized) transcript if available
+    if transcript_buffer:
+        transcript_context = " ".join(transcript_buffer)
+        messages.append((
+            "system",
+            f"Current live transcript (not yet summarized): {transcript_context}"
+        ))
+
+    # Replay previous chat turns
+    for role, content in chat_history:
+        messages.append((role, content))
+
+    # Add current user message
+    messages.append(("human", user_message))
+    chat_history.append(("human", user_message))
+
+    try:
+        loop = asyncio.get_event_loop()
+        ai_msg = await loop.run_in_executor(None, chat_llm.invoke, messages)
+
+        full_response = ai_msg.content
+
+        await broadcast(f"__CHAT_TOKEN__:{full_response}")
+        chat_history.append(("ai", full_response))
+        await broadcast("__CHAT_DONE__")
+        print(f"[Chat] Sync AI: {full_response[:100]}...")
+
+    except Exception as e:
+        err = str(e)
+        print(f"[Chat] Error: {err}")
+        await broadcast(f"__CHAT_ERROR__:{err}")
+
+
+# ─── Helpers ─────────────────────────────────────────────────────────────────
+
+async def broadcast(message: str):
+    """Send a message to every connected browser client."""
+    disconnected = []
+    for ws in browser_clients:
+        try:
+            await ws.send_text(message)
+        except Exception:
+            disconnected.append(ws)
+    for ws in disconnected:
+        browser_clients.remove(ws)
+
+
+# ─── FastAPI lifecycle ───────────────────────────────────────────────────────
+
+@asynccontextmanager
+async def lifespan(app: FastAPI):
+    print("[FastAPI] Server ready")
+    yield
+
+
+app = FastAPI(lifespan=lifespan)
+
+
+# ─── WebSocket: browser clients ─────────────────────────────────────────────
+
+@app.websocket("/ws")
+async def websocket_browser(ws: WebSocket):
+    await ws.accept()
+    browser_clients.append(ws)
+    try:
+        while True:
+            msg = await ws.receive_text()
+            # Browser sends "PROCESS" when user clicks Stop/Q
+            if msg == "PROCESS":
+                full_text = " ".join(transcript_buffer)
+                asyncio.create_task(run_llm_on_transcript(full_text))
+            # Browser sends chat message as "CHAT:message"
+            elif msg.startswith("CHAT:"):
+                user_msg = msg[5:]
+                asyncio.create_task(run_chat_response(user_msg))
+            # Browser sends "CLEAR_HISTORY" to reset conversation
+            elif msg == "CLEAR_HISTORY":
+                conversation_history.clear()
+                chat_history.clear()
+                transcript_buffer.clear()
+                summary_history.clear()
+                await broadcast("__STATUS__:history_cleared")
+    except WebSocketDisconnect:
+        if ws in browser_clients:
+            browser_clients.remove(ws)
+
+
+# ─── WebSocket: ESP32 audio → Deepgram (fully async, no threads) ────────────
+
+@app.websocket("/ws/audio")
+async def websocket_audio(esp_ws: WebSocket):
+    await esp_ws.accept()
+    await broadcast("__STATUS__:esp32_connected")
+    print("[ESP32] Connected via WebSocket")
+
+    # Clear buffer for new session
+    transcript_buffer.clear()
+
+    dg_ws = None
+    recv_task = None
+    chunks = 0
+    try:
+        headers = {"Authorization": f"Token {DEEPGRAM_API_KEY}"}
+        print(f"[Deepgram] Connecting to: {DEEPGRAM_URL[:80]}...")
+        print(f"[Deepgram] API key: {DEEPGRAM_API_KEY[:8]}...{DEEPGRAM_API_KEY[-4:]}")
+        dg_ws = await websockets.connect(
+            DEEPGRAM_URL,
+            additional_headers=headers,
+            ping_interval=20,
+            ping_timeout=20,
+            close_timeout=5,
+        )
+        await broadcast("__STATUS__:deepgram_connected")
+        print(f"[Deepgram] Connected (state: open={dg_ws.protocol.state if hasattr(dg_ws, 'protocol') else 'n/a'})")
+
+        async def receive_transcripts():
+            """Receive and process Deepgram transcript messages."""
+            nonlocal dg_ws
+            print("[Deepgram] Receive task started — waiting for messages...")
+            msg_count = 0
+            try:
+                while True:
+                    try:
+                        msg = await dg_ws.recv()
+                    except websockets.ConnectionClosed as e:
+                        print(f"[Deepgram] Connection closed during recv: code={e.code} reason={e.reason}")
+                        await broadcast(f"__DEBUG__:[DG] Closed: {e.code} {e.reason}")
+                        break
+
+                    msg_count += 1
+                    # Log first few raw messages for debugging
+                    if msg_count <= 3:
+                        raw_preview = str(msg)[:300] if isinstance(msg, str) else f"<bytes len={len(msg)}>"
+                        print(f"[Deepgram] Raw msg #{msg_count}: {raw_preview}")
+
+                    try:
+                        data = json.loads(msg)
+                    except (json.JSONDecodeError, TypeError) as je:
+                        print(f"[Deepgram] JSON parse error: {je} — raw: {str(msg)[:200]}")
+                        continue
+
+                    msg_type = data.get("type", "")
+
+                    if msg_type != "Results":
+                        print(f"[Deepgram] Event: {msg_type} → {str(data)[:200]}")
+                        await broadcast(f"__DEBUG__:[DG] {msg_type}: {str(data)[:150]}")
+                        continue
+
+                    channel = data.get("channel")
+                    if not isinstance(channel, dict):
+                        continue
+
+                    alternatives = channel.get("alternatives", [])
+                    if not alternatives:
+                        continue
+
+                    transcript = alternatives[0].get("transcript", "")
+                    if transcript:
+                        is_final = data.get("is_final", False)
+                        prefix = "FINAL" if is_final else "INTERIM"
+                        await broadcast(f"__{prefix}__:{transcript}")
+                        print(f"[{prefix}] {transcript}")
+
+                        # Buffer only final lines for LLM
+                        if is_final:
+                            transcript_buffer.append(transcript)
+
+            except asyncio.CancelledError:
+                print(f"[Deepgram] Receive task cancelled after {msg_count} messages")
+            except Exception as e:
+                import traceback
+                print(f"[Deepgram] Receive error: {type(e).__name__}: {e}")
+                traceback.print_exc()
+                await broadcast(f"__DEBUG__:[DG] Recv error: {e}")
+
+        def task_exception_callback(task: asyncio.Task):
+            """Catch any unhandled exception from the receive task."""
+            if task.cancelled():
+                return
+            exc = task.exception()
+            if exc:
+                print(f"[Deepgram] TASK EXCEPTION: {type(exc).__name__}: {exc}")
+
+        recv_task = asyncio.create_task(receive_transcripts())
+        recv_task.add_done_callback(task_exception_callback)
+
+        while True:
+            audio = await esp_ws.receive_bytes()
+            try:
+                await dg_ws.send(audio)
+            except Exception as send_err:
+                print(f"[Deepgram] Send failed: {type(send_err).__name__}: {send_err}")
+                print("[Deepgram] Connection lost, reconnecting...")
+                try:
+                    dg_ws = await websockets.connect(
+                        DEEPGRAM_URL,
+                        additional_headers=headers,
+                        ping_interval=20,
+                        ping_timeout=20,
+                        close_timeout=5,
+                    )
+                    recv_task.cancel()
+                    recv_task = asyncio.create_task(receive_transcripts())
+                    recv_task.add_done_callback(task_exception_callback)
+                    await dg_ws.send(audio)
+                    print("[Deepgram] Reconnected!")
+                except Exception as re_err:
+                    print(f"[Deepgram] Reconnect failed: {re_err}")
+                    break
+
+            chunks += 1
+            if chunks == 1:
+                print(f"[Audio] First chunk: {len(audio)} bytes")
+            if chunks % 500 == 0:
+                print(f"[Audio] Forwarded {chunks} chunks")
+                # Check if receive task is still alive
+                if recv_task.done():
+                    print("[Deepgram] WARNING: Receive task died! Restarting...")
+                    recv_task = asyncio.create_task(receive_transcripts())
+                    recv_task.add_done_callback(task_exception_callback)
+
+    except WebSocketDisconnect:
+        print(f"[ESP32] Disconnected after {chunks} chunks")
+    except Exception as e:
+        import traceback
+        print(f"[Error] {type(e).__name__}: {e}")
+        traceback.print_exc()
+    finally:
+        if recv_task and not recv_task.done():
+            recv_task.cancel()
+        try:
+            if dg_ws:
+                await dg_ws.close()
+        except Exception:
+            pass
+        await broadcast("__STATUS__:esp32_disconnected")
+        await broadcast("__STATUS__:deepgram_disconnected")
+        print("[Cleanup] Session ended")
+
+
+# ─── Serve the single-page UI ───────────────────────────────────────────────
+
+PAGE_HTML = """\
+<!DOCTYPE html>
+<html lang="en">
+<head>
+<meta charset="utf-8" />
+<meta name="viewport" content="width=device-width, initial-scale=1" />
+<title>SyncScribe</title>
+<link href="https://fonts.googleapis.com/css2?family=IBM+Plex+Mono:wght@400;500;600&family=Source+Serif+4:ital,opsz,wght@0,8..60,400;0,8..60,600;1,8..60,400&display=swap" rel="stylesheet">
+<style>
+  :root {
+    --bg:        #0c0e12;
+    --surface:   #14171d;
+    --border:    #23272f;
+    --text:      #d4d8e0;
+    --muted:     #6b7280;
+    --accent:    #34d399;
+    --accent-dim:#1a7a52;
+    --danger:    #f87171;
+    --warn:      #fbbf24;
+    --llm:       #818cf8;
+    --llm-dim:   #312e81;
+  }
+
+  * { margin: 0; padding: 0; box-sizing: border-box; }
+
+  body {
+    background: var(--bg);
+    color: var(--text);
+    font-family: 'Source Serif 4', Georgia, serif;
+    min-height: 100vh;
+    display: flex;
+    flex-direction: column;
+  }
+
+  /* ── Split layout wrapper ───────────────────── */
+  .app-body {
+    display: flex;
+    flex: 1;
+    overflow: hidden;
+    height: calc(100vh - 80px);
+  }
+
+  /* ── Header (glassmorphism) ──────────────────── */
+  header {
+    padding: 28px 32px 20px;
+    display: flex;
+    align-items: center;
+    justify-content: space-between;
+    flex-wrap: wrap;
+    gap: 12px;
+    position: sticky;
+    top: 0;
+    z-index: 100;
+    /* Glass background */
+    background: rgba(20, 23, 29, 0.55);
+    backdrop-filter: blur(14px);
+    -webkit-backdrop-filter: blur(14px);
+    /* Glass border & glow */
+    border: 1px solid rgba(255, 255, 255, 0.08);
+    border-top: none;
+    box-shadow:
+      0 8px 32px rgba(0, 0, 0, 0.25),
+      inset 0 1px 0 rgba(255, 255, 255, 0.12),
+      inset 0 -1px 0 rgba(255, 255, 255, 0.04),
+      inset 0 0 12px 2px rgba(255, 255, 255, 0.03);
+  }
+
+  /* Top edge light streak */
+  header::before {
+    content: '';
+    position: absolute;
+    top: 0;
+    left: 0;
+    right: 0;
+    height: 1px;
+    background: linear-gradient(
+      90deg,
+      transparent 5%,
+      rgba(255, 255, 255, 0.35),
+      rgba(52, 211, 153, 0.25),
+      rgba(255, 255, 255, 0.35),
+      transparent 95%
+    );
+  }
+
+  /* Left edge light streak */
+  header::after {
+    content: '';
+    position: absolute;
+    top: 0;
+    left: 0;
+    width: 1px;
+    height: 100%;
+    background: linear-gradient(
+      180deg,
+      rgba(255, 255, 255, 0.3),
+      transparent 50%,
+      rgba(255, 255, 255, 0.08)
+    );
+  }
+
+  header h1 {
+    font-family: 'IBM Plex Mono', monospace;
+    font-weight: 600;
+    font-size: 18px;
+    letter-spacing: -0.02em;
+    color: var(--text);
+  }
+
+  .status-row {
+    display: flex;
+    gap: 20px;
+    font-family: 'IBM Plex Mono', monospace;
+    font-size: 12px;
+    color: var(--muted);
+  }
+
+  .status-item {
+    display: flex;
+    align-items: center;
+    gap: 6px;
+  }
+
+  .dot {
+    width: 8px; height: 8px;
+    border-radius: 50%;
+    background: var(--muted);
+    flex-shrink: 0;
+    transition: background 0.3s;
+  }
+  .dot.ok    { background: var(--accent); box-shadow: 0 0 6px var(--accent-dim); }
+  .dot.warn  { background: var(--warn); }
+  .dot.err   { background: var(--danger); }
+  .dot.llm   { background: var(--llm);  box-shadow: 0 0 6px var(--llm-dim); }
+
+  /* ── Transcript area (left panel) ────────────── */
+  main {
+    flex: 1;
+    padding: 24px 32px 80px;
+    overflow-y: auto;
+    min-width: 0;
+  }
+
+  #transcript-container {
+    max-width: 720px;
+    margin: 0 auto;
+    display: flex;
+    flex-direction: column;
+    gap: 6px;
+  }
+
+  .line {
+    padding: 8px 14px;
+    border-radius: 6px;
+    font-size: 17px;
+    line-height: 1.65;
+    animation: fadein 0.25s ease;
+  }
+
+  .line.final {
+    background: var(--surface);
+    border-left: 3px solid var(--accent-dim);
+    color: var(--text);
+  }
+
+  .line.interim {
+    background: transparent;
+    border-left: 3px solid var(--border);
+    color: var(--muted);
+    font-style: italic;
+  }
+
+  /* ── LLM response block ─────────────────────── */
+  .llm-block {
+    margin-top: 16px;
+    background: #1a1b2e;
+    border: 1px solid var(--llm-dim);
+    border-left: 3px solid var(--llm);
+    border-radius: 8px;
+    padding: 14px 18px;
+    font-size: 17px;
+    line-height: 1.75;
+    color: #c7d2fe;
+    animation: fadein 0.3s ease;
+    white-space: pre-wrap;
+    word-break: break-word;
+  }
+
+  .llm-block .llm-label {
+    font-family: 'IBM Plex Mono', monospace;
+    font-size: 10px;
+    color: var(--llm);
+    text-transform: uppercase;
+    letter-spacing: 0.08em;
+    margin-bottom: 8px;
+    display: flex;
+    align-items: center;
+    gap: 6px;
+  }
+
+  .llm-block .llm-label .pulse {
+    display: inline-block;
+    width: 6px; height: 6px;
+    border-radius: 50%;
+    background: var(--llm);
+    animation: blink 1s infinite;
+  }
+  .llm-block .llm-label .pulse.done {
+    animation: none;
+    background: var(--accent);
+  }
+
+  .divider {
+    display: flex;
+    align-items: center;
+    gap: 12px;
+    margin: 16px 0 10px;
+    color: var(--muted);
+    font-family: 'IBM Plex Mono', monospace;
+    font-size: 11px;
+  }
+  .divider::before, .divider::after {
+    content: '';
+    flex: 1;
+    height: 1px;
+    background: var(--border);
+  }
+
+  .line .ts {
+    font-family: 'IBM Plex Mono', monospace;
+    font-size: 11px;
+    color: var(--muted);
+    margin-right: 10px;
+    user-select: none;
+  }
+
+  .empty-state {
+    text-align: center;
+    margin-top: 20vh;
+    color: var(--muted);
+    font-size: 15px;
+    line-height: 2;
+    font-family: 'IBM Plex Mono', monospace;
+  }
+
+  /* ── Footer bar (inside left panel) ──────────── */
+  footer {
+    position: sticky;
+    bottom: 0;
+    padding: 12px 24px;
+    background: var(--surface);
+    border-top: 1px solid var(--border);
+    display: flex;
+    align-items: center;
+    justify-content: space-between;
+    font-family: 'IBM Plex Mono', monospace;
+    font-size: 12px;
+    color: var(--muted);
+    gap: 12px;
+    flex-wrap: wrap;
+    z-index: 10;
+  }
+
+  .footer-btns { display: flex; gap: 8px; }
+
+  footer button {
+    background: none;
+    border: 1px solid var(--border);
+    color: var(--muted);
+    font-family: inherit;
+    font-size: 12px;
+    padding: 6px 14px;
+    border-radius: 4px;
+    cursor: pointer;
+    transition: all 0.15s;
+  }
+  footer button:hover {
+    border-color: var(--accent-dim);
+    color: var(--text);
+  }
+
+  footer button#btn-stop {
+    border-color: var(--llm-dim);
+    color: var(--llm);
+  }
+  footer button#btn-stop:hover {
+    border-color: var(--llm);
+    background: #1e1b4b44;
+  }
+  footer button#btn-stop:disabled {
+    opacity: 0.35;
+    cursor: default;
+    pointer-events: none;
+  }
+
+  footer button#btn-clear-history {
+    border-color: var(--border);
+    color: var(--muted);
+  }
+
+  @keyframes fadein {
+    from { opacity: 0; transform: translateY(4px); }
+    to   { opacity: 1; transform: translateY(0); }
+  }
+
+  @keyframes blink {
+    0%, 100% { opacity: 1; }
+    50%       { opacity: 0.2; }
+  }
+
+  /* ── Right chat panel ────────────────────────── */
+  .chat-panel {
+    width: 380px;
+    min-width: 320px;
+    border-left: 1px solid var(--border);
+    display: flex;
+    flex-direction: column;
+    background: var(--surface);
+  }
+  /* On desktop, .hidden class is ignored — both panels always show */
+  @media (min-width: 769px) {
+    .chat-panel.hidden { display: flex !important; }
+    .left-panel.hidden { display: flex !important; }
+  }
+
+  .chat-panel-header {
+    padding: 14px 18px;
+    border-bottom: 1px solid var(--border);
+    font-family: 'IBM Plex Mono', monospace;
+    font-size: 13px;
+    font-weight: 600;
+    color: var(--llm);
+    display: flex;
+    align-items: center;
+    gap: 8px;
+    background: rgba(20, 23, 29, 0.55);
+    backdrop-filter: blur(14px);
+    -webkit-backdrop-filter: blur(14px);
+  }
+  .chat-panel-header .panel-dot {
+    width: 8px; height: 8px;
+    border-radius: 50%;
+    background: var(--llm);
+    box-shadow: 0 0 6px var(--llm-dim);
+    animation: blink 2s infinite;
+  }
+
+  .chat-messages {
+    flex: 1;
+    overflow-y: auto;
+    padding: 16px 14px;
+    display: flex;
+    flex-direction: column;
+    gap: 8px;
+  }
+
+  .chat-empty {
+    text-align: center;
+    margin-top: 30%;
+    color: var(--muted);
+    font-size: 13px;
+    line-height: 1.8;
+    font-family: 'IBM Plex Mono', monospace;
+  }
+
+  .chat-input-bar {
+    padding: 12px 14px;
+    border-top: 1px solid var(--border);
+    display: flex;
+    align-items: center;
+    gap: 8px;
+    background: var(--surface);
+  }
+
+  .chat-input-bar input {
+    flex: 1;
+    background: var(--bg);
+    border: 1px solid var(--border);
+    color: var(--text);
+    font-family: 'Source Serif 4', Georgia, serif;
+    font-size: 14px;
+    padding: 10px 12px;
+    border-radius: 8px;
+    outline: none;
+    transition: border-color 0.2s;
+  }
+  .chat-input-bar input:focus {
+    border-color: var(--llm);
+  }
+  .chat-input-bar input::placeholder {
+    color: var(--muted);
+  }
+
+  .chat-input-bar button {
+    background: var(--llm-dim);
+    border: 1px solid var(--llm);
+    color: var(--llm);
+    font-family: 'IBM Plex Mono', monospace;
+    font-size: 12px;
+    padding: 10px 16px;
+    border-radius: 8px;
+    cursor: pointer;
+    transition: all 0.15s;
+    white-space: nowrap;
+  }
+  .chat-input-bar button:hover {
+    background: #312e81;
+    color: #c7d2fe;
+  }
+  .chat-input-bar button:disabled {
+    opacity: 0.35;
+    cursor: default;
+    pointer-events: none;
+  }
+
+  /* ── Chat bubbles ───────────────────────────── */
+  .chat-user {
+    align-self: flex-end;
+    background: #1a3a2a;
+    border: 1px solid var(--accent-dim);
+    border-radius: 12px 12px 2px 12px;
+    padding: 10px 14px;
+    font-size: 14px;
+    line-height: 1.6;
+    color: var(--accent);
+    max-width: 90%;
+    animation: fadein 0.2s ease;
+  }
+  .chat-user .chat-label {
+    font-family: 'IBM Plex Mono', monospace;
+    font-size: 10px;
+    color: var(--accent-dim);
+    text-transform: uppercase;
+    letter-spacing: 0.08em;
+    margin-bottom: 4px;
+  }
+
+  .chat-ai {
+    align-self: flex-start;
+    background: #1a1b2e;
+    border: 1px solid var(--llm-dim);
+    border-radius: 12px 12px 12px 2px;
+    padding: 10px 14px;
+    font-size: 14px;
+    line-height: 1.6;
+    color: #c7d2fe;
+    max-width: 90%;
+    animation: fadein 0.25s ease;
+    white-space: pre-wrap;
+    word-break: break-word;
+  }
+  .chat-ai .chat-label {
+    font-family: 'IBM Plex Mono', monospace;
+    font-size: 10px;
+    color: var(--llm);
+    text-transform: uppercase;
+    letter-spacing: 0.08em;
+    margin-bottom: 4px;
+    display: flex;
+    align-items: center;
+    gap: 6px;
+  }
+
+  /* ── Mobile tab bar ──────────────────────────── */
+  .mobile-tabs {
+    display: none;
+  }
+
+  /* ── Responsive: mobile layout ─────────────── */
+  @media (max-width: 768px) {
+    header {
+      padding: 14px 16px 12px;
+    }
+    header h1 {
+      font-size: 15px;
+    }
+    .status-row {
+      gap: 10px;
+      font-size: 10px;
+    }
+
+    .mobile-tabs {
+      display: flex;
+      background: var(--surface);
+      border-bottom: 1px solid var(--border);
+      padding: 0;
+      z-index: 50;
+    }
+    .mobile-tabs button {
+      flex: 1;
+      padding: 10px 0;
+      background: none;
+      border: none;
+      border-bottom: 2px solid transparent;
+      color: var(--muted);
+      font-family: 'IBM Plex Mono', monospace;
+      font-size: 12px;
+      font-weight: 600;
+      cursor: pointer;
+      transition: all 0.2s;
+    }
+    .mobile-tabs button.active {
+      color: var(--llm);
+      border-bottom-color: var(--llm);
+    }
+
+    .app-body {
+      flex-direction: column;
+      height: calc(100vh - 100px);
+    }
+
+    .left-panel {
+      display: flex !important;
+      flex: 1;
+      min-height: 0;
+    }
+    .left-panel.hidden {
+      display: none !important;
+    }
+
+    .chat-panel {
+      display: flex !important;
+      width: 100% !important;
+      min-width: 0 !important;
+      flex: 1;
+      border-left: none !important;
+      border-top: 1px solid var(--border);
+    }
+    .chat-panel.hidden {
+      display: none !important;
+    }
+
+    main {
+      padding: 16px 16px 60px;
+    }
+
+    footer {
+      padding: 8px 12px;
+    }
+    .footer-btns {
+      gap: 4px;
+    }
+    footer button {
+      padding: 5px 10px;
+      font-size: 11px;
+    }
+
+    .chat-input-bar {
+      padding: 8px 10px;
+    }
+
+    #debug-panel {
+      display: none !important;
+    }
+  }
+
+</style>
+</head>
+<body>
+
+<header>
+  <h1>SyncScribe</h1>
+  <div class="status-row">
+    <div class="status-item">
+      <span class="dot" id="dot-ws"></span>
+      <span id="lbl-ws">WebSocket</span>
+    </div>
+    <div class="status-item">
+      <span class="dot" id="dot-dg"></span>
+      <span id="lbl-dg">Deepgram</span>
+    </div>
+    <div class="status-item">
+      <span class="dot" id="dot-esp"></span>
+      <span id="lbl-esp">ESP32</span>
+    </div>
+    <div class="status-item">
+      <span class="dot" id="dot-llm"></span>
+      <span id="lbl-llm">Sync AI</span>
+    </div>
+  </div>
+</header>
+
+<!-- Mobile tab bar -->
+<div class="mobile-tabs" id="mobile-tabs">
+  <button class="active" id="tab-transcript" onclick="switchTab('transcript')">📝 Transcript</button>
+  <button id="tab-chat" onclick="switchTab('chat')">💬 Chat</button>
+</div>
+
+<div class="app-body">
+
+<!-- Left panel: transcript + summaries -->
+<div class="left-panel" id="left-panel" style="flex:1;display:flex;flex-direction:column;overflow:hidden;">
+<main>
+  <div id="transcript-container">
+    <div class="empty-state" id="empty">
+      Waiting for audio stream from ESP32 ...<br>
+      ESP32 connects via WebSocket on /ws/audio
+    </div>
+  </div>
+</main>
+
+<footer>
+  <span id="line-count">0 lines</span>
+  <div class="footer-btns">
+    <button id="btn-stop" onclick="triggerLLM()" disabled
+            title="Process transcript with Sync AI (or press Q)">
+      ⬡ Ask Sync AI
+    </button>
+    <button onclick="clearTranscript()">Clear</button>
+    <button id="btn-clear-history" onclick="clearHistory()">Reset Chat</button>
+  </div>
+</footer>
+</div>
+
+<!-- Right panel: chat with Sync AI -->
+<aside class="chat-panel hidden" id="chat-panel">
+  <div class="chat-panel-header">
+    <span class="panel-dot"></span>
+    Chat with Sync AI
+  </div>
+  <div class="chat-messages" id="chat-messages">
+    <div class="chat-empty" id="chat-empty">
+      Ask questions about your<br>AI-generated summaries...
+    </div>
+  </div>
+  <div class="chat-input-bar">
+    <input type="text" id="chat-input" placeholder="Ask about summaries..." autocomplete="off" />
+    <button id="btn-chat-send" onclick="sendChat()">Send</button>
+  </div>
+</aside>
+
+</div>
+
+<div id="debug-panel" style="position:fixed;bottom:50px;left:0;width:380px;max-height:30vh;overflow-y:auto;background:#0d0f14;border:1px solid #23272f;border-radius:0 8px 0 0;padding:10px;font-family:'IBM Plex Mono',monospace;font-size:11px;color:#6b7280;z-index:999;">
+  <div style="display:flex;justify-content:space-between;margin-bottom:6px;">
+    <span style="color:#818cf8;">⬡ Debug Log</span>
+    <button onclick="document.getElementById('debug-panel').style.display='none'" style="background:none;border:none;color:#6b7280;cursor:pointer;font-size:11px;">✕</button>
+  </div>
+  <div id="debug-log"></div>
+</div>
+
+<script>
+  const container   = document.getElementById('transcript-container');
+  const emptyEl     = document.getElementById('empty');
+  const countEl     = document.getElementById('line-count');
+  const dotWs       = document.getElementById('dot-ws');
+  const dotDg       = document.getElementById('dot-dg');
+  const dotEsp      = document.getElementById('dot-esp');
+  const dotLlm      = document.getElementById('dot-llm');
+  const btnStop     = document.getElementById('btn-stop');
+  const chatInput   = document.getElementById('chat-input');
+  const btnChatSend = document.getElementById('btn-chat-send');
+  const chatContainer = document.getElementById('chat-messages');
+  const chatEmptyEl   = document.getElementById('chat-empty');
+  const leftPanel     = document.getElementById('left-panel');
+  const chatPanel     = document.getElementById('chat-panel');
+  const tabTranscript = document.getElementById('tab-transcript');
+  const tabChat       = document.getElementById('tab-chat');
+
+  // ── Mobile tab switching ──────────────────────────────────────────────────
+  function switchTab(tab) {
+    if (tab === 'transcript') {
+      leftPanel.classList.remove('hidden');
+      chatPanel.classList.add('hidden');
+      tabTranscript.classList.add('active');
+      tabChat.classList.remove('active');
+    } else {
+      leftPanel.classList.add('hidden');
+      chatPanel.classList.remove('hidden');
+      tabTranscript.classList.remove('active');
+      tabChat.classList.add('active');
+      scrollChatBottom();
+    }
+  }
+
+  let interimEl    = null;
+  let lineCount    = 0;
+  let hasTranscript = false;   // true once at least one FINAL line exists
+  let llmStreaming  = false;
+  let chatStreaming = false;
+  let currentLlmEl  = null;    // the active streaming .llm-block
+  let currentChatAiEl = null;  // the active streaming chat-ai bubble
+  let ws;
+
+  // ── Keyboard shortcut Q (skip when typing in chat input) ──────────────────
+  document.addEventListener('keydown', (e) => {
+    if (document.activeElement === chatInput) return;
+    if ((e.key === 'q' || e.key === 'Q') && !e.ctrlKey && !e.metaKey) {
+      triggerLLM();
+    }
+  });
+
+  // ── Enter key in chat input ───────────────────────────────────────────────
+  chatInput.addEventListener('keydown', (e) => {
+    if (e.key === 'Enter' && !e.shiftKey) {
+      e.preventDefault();
+      sendChat();
+    }
+  });
+
+  // ── Helpers ───────────────────────────────────────────────────────────────
+  function now() {
+    return new Date().toLocaleTimeString('en-GB', { hour12: false });
+  }
+
+  function scrollBottom() {
+    const mainEl = document.querySelector('main');
+    if (mainEl) mainEl.scrollTo({ top: mainEl.scrollHeight, behavior: 'smooth' });
+  }
+
+  function scrollChatBottom() {
+    chatContainer.scrollTo({ top: chatContainer.scrollHeight, behavior: 'smooth' });
+  }
+
+  function escHtml(s) {
+    const d = document.createElement('div');
+    d.textContent = s;
+    return d.innerHTML;
+  }
+
+  // ── Transcript lines ──────────────────────────────────────────────────────
+  function addFinalLine(text) {
+    if (interimEl) { interimEl.remove(); interimEl = null; }
+    emptyEl.style.display = 'none';
+    const div = document.createElement('div');
+    div.className = 'line final';
+    div.innerHTML = '<span class="ts">' + now() + '</span>' + escHtml(text);
+    container.appendChild(div);
+    lineCount++;
+    countEl.textContent = lineCount + ' line' + (lineCount === 1 ? '' : 's');
+    hasTranscript = true;
+    btnStop.disabled = false;
+    scrollBottom();
+  }
+
+  function showInterim(text) {
+    if (!interimEl) {
+      interimEl = document.createElement('div');
+      interimEl.className = 'line interim';
+      container.appendChild(interimEl);
+    }
+    interimEl.innerHTML = '<span class="ts">' + now() + '</span>' + escHtml(text);
+    scrollBottom();
+  }
+
+  // ── LLM UI ────────────────────────────────────────────────────────────────
+  function triggerLLM() {
+    if (!hasTranscript || llmStreaming) return;
+    if (!ws || ws.readyState !== WebSocket.OPEN) return;
+    ws.send('PROCESS');
+  }
+
+  function clearHistory() {
+    if (!ws || ws.readyState !== WebSocket.OPEN) return;
+    ws.send('CLEAR_HISTORY');
+  }
+
+  // ── Chat functions ────────────────────────────────────────────────────────
+  function sendChat() {
+    const msg = chatInput.value.trim();
+    if (!msg || chatStreaming) return;
+    if (!ws || ws.readyState !== WebSocket.OPEN) return;
+
+    // Hide empty state
+    if (chatEmptyEl) chatEmptyEl.style.display = 'none';
+
+    // Show user bubble in chat panel
+    const userBubble = document.createElement('div');
+    userBubble.className = 'chat-user';
+    userBubble.innerHTML = '<div class="chat-label">You</div>' + escHtml(msg);
+    chatContainer.appendChild(userBubble);
+    scrollChatBottom();
+
+    // Send to server
+    ws.send('CHAT:' + msg);
+    chatInput.value = '';
+    chatInput.focus();
+  }
+
+  function startChatBlock() {
+    chatStreaming = true;
+    dotLlm.className = 'dot llm';
+    btnChatSend.disabled = true;
+
+    currentChatAiEl = document.createElement('div');
+    currentChatAiEl.className = 'chat-ai';
+    currentChatAiEl.innerHTML =
+      '<div class="chat-label"><span class="pulse chat-pulse"></span> Sync AI</div>' +
+      '<span class="chat-ai-text"></span>';
+    chatContainer.appendChild(currentChatAiEl);
+    scrollChatBottom();
+  }
+
+  function appendChatToken(token) {
+    if (!currentChatAiEl) return;
+    const textEl = currentChatAiEl.querySelector('.chat-ai-text');
+    if (textEl) {
+      textEl.textContent += token;
+      scrollChatBottom();
+    }
+  }
+
+  function finishChatBlock() {
+    chatStreaming = false;
+    dotLlm.className = 'dot ok';
+    btnChatSend.disabled = false;
+
+    if (currentChatAiEl) {
+      const pulse = currentChatAiEl.querySelector('.chat-pulse');
+      if (pulse) pulse.className = 'pulse done chat-pulse';
+    }
+
+    scrollChatBottom();
+    chatInput.focus();
+  }
+
+  function showChatError(msg) {
+    chatStreaming = false;
+    dotLlm.className = 'dot err';
+    btnChatSend.disabled = false;
+    if (currentChatAiEl) {
+      const textEl = currentChatAiEl.querySelector('.chat-ai-text');
+      if (textEl) textEl.textContent = '⚠ ' + msg;
+    }
+  }
+
+
+
+  function startLlmBlock() {
+    llmStreaming = true;
+    dotLlm.className = 'dot llm';
+    btnStop.disabled = true;
+
+    // Add a divider
+    const div = document.createElement('div');
+    div.className = 'divider';
+    div.textContent = 'Sync AI';
+    container.appendChild(div);
+
+    // Create the LLM response block
+    currentLlmEl = document.createElement('div');
+    currentLlmEl.className = 'llm-block';
+    currentLlmEl.innerHTML =
+      '<div class="llm-label"><span class="pulse llm-pulse"></span> Sync AI is thinking...</div>' +
+      '<span class="llm-text"></span>';
+    container.appendChild(currentLlmEl);
+    scrollBottom();
+  }
+
+  function appendLlmToken(token) {
+    if (!currentLlmEl) return;
+    const textEl = currentLlmEl.querySelector('.llm-text');
+    if (textEl) {
+      textEl.textContent += token;
+      scrollBottom();
+    }
+  }
+
+  function finishLlmBlock() {
+    llmStreaming = false;
+    dotLlm.className = 'dot ok';
+
+    const pulse = currentLlmEl && currentLlmEl.querySelector('.llm-pulse');
+    if (pulse) pulse.className = 'pulse done llm-pulse';
+
+    const label = currentLlmEl && currentLlmEl.querySelector('.llm-label');
+    if (label) label.innerHTML = '<span class="pulse done"></span> Sync AI';
+
+    btnStop.disabled = !hasTranscript;
+    scrollBottom();
+
+    // Re-enable the button after a brief pause so user can ask follow-up
+    setTimeout(() => {
+      if (hasTranscript) btnStop.disabled = false;
+    }, 500);
+  }
+
+  function showLlmError(msg) {
+    llmStreaming = false;
+    dotLlm.className = 'dot err';
+    if (currentLlmEl) {
+      const textEl = currentLlmEl.querySelector('.llm-text');
+      if (textEl) textEl.textContent = '⚠ ' + msg;
+      const label = currentLlmEl.querySelector('.llm-label');
+      if (label) label.innerHTML = '<span class="pulse done" style="background:var(--danger)"></span> Error';
+    }
+    btnStop.disabled = false;
+  }
+
+  // ── Clear functions ───────────────────────────────────────────────────────
+  function clearTranscript() {
+    container.querySelectorAll('.line, .llm-block, .divider').forEach(el => el.remove());
+    interimEl       = null;
+    currentLlmEl    = null;
+    lineCount       = 0;
+    hasTranscript   = false;
+    countEl.textContent = '0 lines';
+    emptyEl.style.display = '';
+    btnStop.disabled = true;
+  }
+
+  function clearChatPanel() {
+    chatContainer.querySelectorAll('.chat-user, .chat-ai').forEach(el => el.remove());
+    currentChatAiEl = null;
+    if (chatEmptyEl) chatEmptyEl.style.display = '';
+  }
+
+  // ── WebSocket ─────────────────────────────────────────────────────────────
+  function connect() {
+    const proto = location.protocol === 'https:' ? 'wss' : 'ws';
+    ws = new WebSocket(proto + '://' + location.host + '/ws');
+
+    ws.onopen = () => {
+      dotWs.className = 'dot ok';
+    };
+
+    ws.onclose = () => {
+      dotWs.className = 'dot err';
+      setTimeout(connect, 2000);
+    };
+
+    ws.onerror = () => {
+      dotWs.className = 'dot err';
+    };
+
+    ws.onmessage = (e) => {
+      const msg = e.data;
+
+      // ── Status updates ───────────────────────────────────────────────────
+      if (msg.startsWith('__STATUS__:')) {
+        const status = msg.split(':')[1];
+        if (status === 'deepgram_connected')    dotDg.className  = 'dot ok';
+        if (status === 'deepgram_disconnected') dotDg.className  = 'dot err';
+        if (status === 'esp32_connected')       dotEsp.className = 'dot ok';
+        if (status === 'esp32_disconnected')    dotEsp.className = 'dot err';
+        if (status === 'history_cleared') {
+          dotLlm.className = 'dot';
+          clearChatPanel();
+          console.log('[Chat] History cleared');
+        }
+        return;
+      }
+
+      // ── Transcript lines ─────────────────────────────────────────────────
+      if (msg.startsWith('__FINAL__:')) {
+        addFinalLine(msg.substring('__FINAL__:'.length));
+        return;
+      }
+      if (msg.startsWith('__INTERIM__:')) {
+        showInterim(msg.substring('__INTERIM__:'.length));
+        return;
+      }
+
+      // ── LLM events ───────────────────────────────────────────────────────
+      if (msg === '__LLM_START__') {
+        startLlmBlock();
+        return;
+      }
+      if (msg.startsWith('__LLM_TOKEN__:')) {
+        appendLlmToken(msg.substring('__LLM_TOKEN__:'.length));
+        return;
+      }
+      if (msg === '__LLM_DONE__') {
+        finishLlmBlock();
+        return;
+      }
+      if (msg.startsWith('__LLM_ERROR__:')) {
+        showLlmError(msg.substring('__LLM_ERROR__:'.length));
+        return;
+      }
+
+      // ── Chat events ───────────────────────────────────────────────────────
+      if (msg === '__CHAT_START__') {
+        startChatBlock();
+        return;
+      }
+      if (msg.startsWith('__CHAT_TOKEN__:')) {
+        appendChatToken(msg.substring('__CHAT_TOKEN__:'.length));
+        return;
+      }
+      if (msg === '__CHAT_DONE__') {
+        finishChatBlock();
+        return;
+      }
+      if (msg.startsWith('__CHAT_ERROR__:')) {
+        showChatError(msg.substring('__CHAT_ERROR__:'.length));
+        return;
+      }
+
+
+      // ── Debug log ─────────────────────────────────────────────────────
+      if (msg.startsWith('__DEBUG__:')) {
+        const logEl = document.getElementById('debug-log');
+        if (logEl) {
+          const d = document.createElement('div');
+          d.style.borderBottom = '1px solid #1a1d24';
+          d.style.padding = '3px 0';
+          d.style.wordBreak = 'break-all';
+          d.textContent = new Date().toLocaleTimeString() + ' ' + msg.substring('__DEBUG__:'.length);
+          logEl.appendChild(d);
+          logEl.scrollTop = logEl.scrollHeight;
+        }
+        return;
+      }
+    };
+  }
+
+  connect();
+</script>
+</body>
+</html>
+"""
+
+
+@app.get("/", response_class=HTMLResponse)
+async def index():
+    return PAGE_HTML
+
+
+# ─── Entrypoint ──────────────────────────────────────────────────────────────
+
+if __name__ == "__main__":
+    import uvicorn
+    uvicorn.run(app, host=FASTAPI_HOST, port=FASTAPI_PORT)
